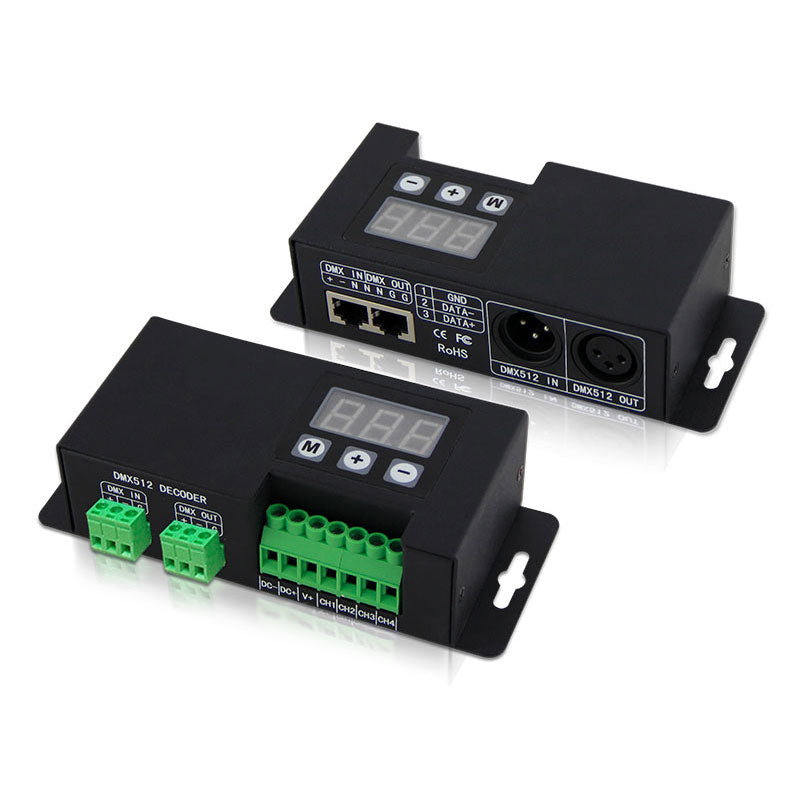

BC-854

DMX512 decoder is specially developed for constant voltage LED lamps, using advanced microcomputer control technology to convert the internationally widely used DMX512/1990 standard digital control signal into PWM (pulse width modulation) control signal. 1~4 output channels can be selected, and can achieve 4096 levels of grayscale control, rich signal input interfaces, more convenient for users to use.

● Automatically adapts to DC12V-24V voltage input;

● DMX512 international standard protocol input, 3-digit digital tube displays DMX address code;

● 4-channel output, each channel is 4096 levels of grayscale, logarithmic dimming, delicate lighting, no strobe;

● Support DMX master mode and slave mode;

● The main mode comes with 8 pattern modes and 10 levels of change speed;

● Receiving DMX512 signal indication function;

● Power-up and down-power memory function;

● DMX signal line connection error protection, output overcurrent protection, short circuit protection;

● DMX signal interfaces are abundant.
