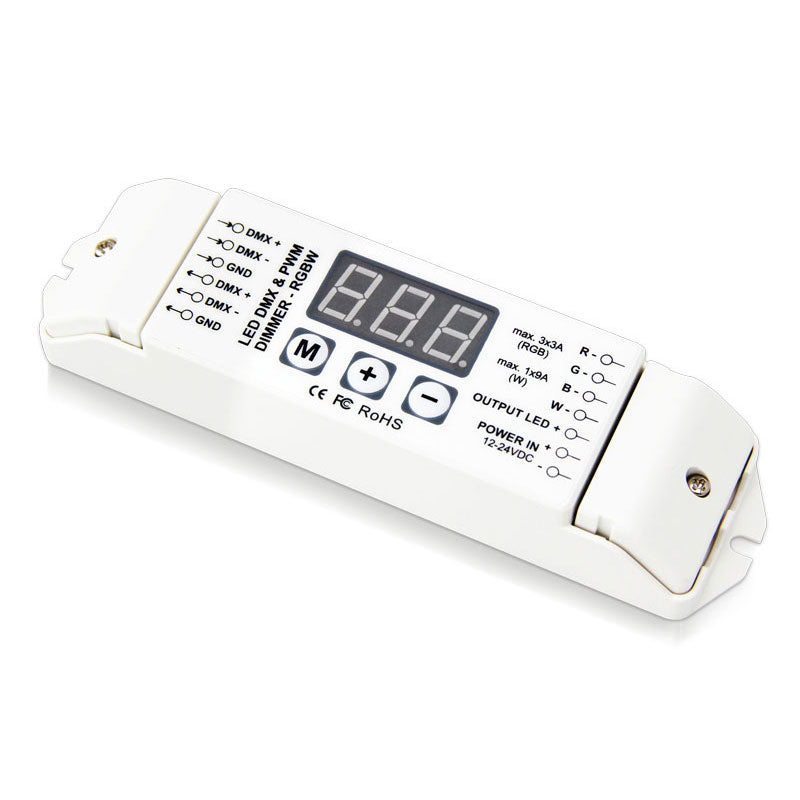

BC-834

DMX512 constant voltage decoder, which is specially developed for constant voltage LED lamps, using advanced microcomputer control technology to convert the internationally widely used DMX512/1990 standard digital control signal into PWM (pulse width modulation) control signal. 1~4 output channels can be selected, and the grayscale control level of 4096 levels can be realized. It can be used in the connection between computer digital output dimmer and analog silicon box, and the control of LED lamps for building and lighting.

● Automatically adapts to DC12V-24V voltage input.

● DMX512 international standard protocol input, 3-digit digital tube displays DMX address code.

● 4 channel outputs, each channel is 4096 levels of grayscale, logarithmic dimming, and the display is delicate and flicker-free.

● Support DMX master mode, slave mode.

● The main mode comes with 8 pattern modes and 10 levels of change speed.

● Receive DMX512 signal status indication function.

● Power-up and power-down memory function.

● DMX signal line misconnection protection, output overcurrent protection, short circuit protection.
